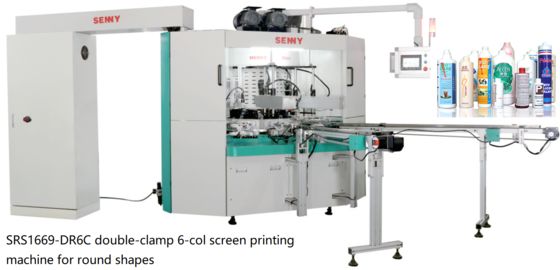

6-Color 45pcs/Min CNC Automatic Screen Printing UV Curing Machine For Tube And Bottle
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | SENNY |
| Sertifikasi: | CE SGS |
| Nomor model: | SRS1669 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 pc |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Paket kayu lapis |
| Waktu pengiriman: | 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 10 PC/bulan |
|
Informasi Detail |
|||
| Kelas mobil: | Sepenuhnya otomatis | Jenis pelat: | Printer layar |
|---|---|---|---|
| Layanan setelah penjualan: | Video atau online | Warna yang dicetak: | 6 |
| Menyoroti: | 6-color automatic screen printing machine,CNC UV curing machine for tubes,45pcs/min bottle printing machine |
||
Deskripsi Produk
Machine Feature

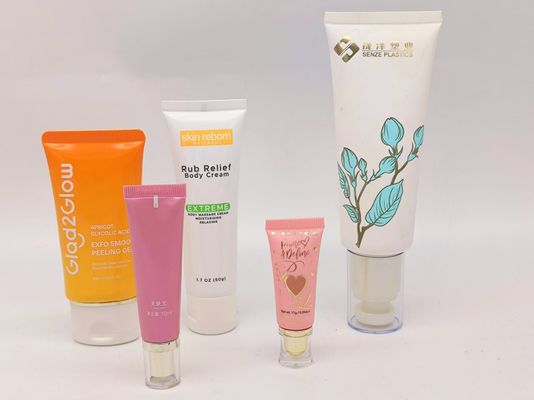

- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
-Product lying flat feeding and discharging function.
- It is equipped with LED-UV curing system.
-Hot stamping function.
- It has a labeling function.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1669 |
| Work Station | 16 |
| Printing Color | 6 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
Printing your vision
