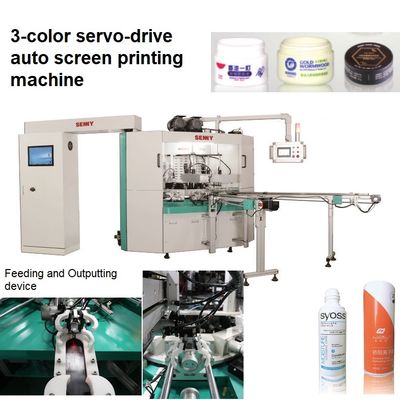

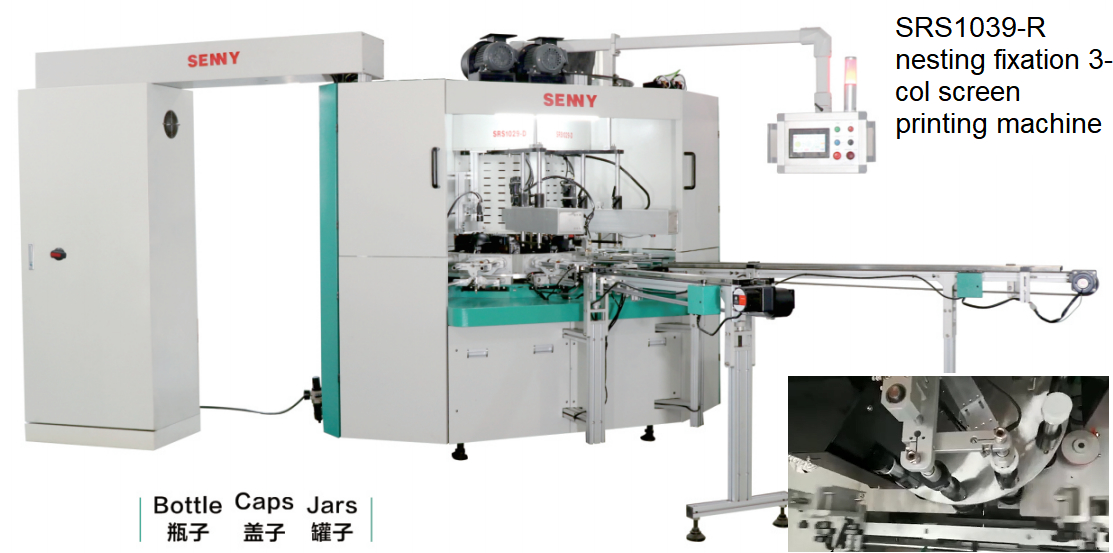

3-Color 80pcs/Min Soft Tube CNC AutomatiC UV Printing Machine
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | SENNY |
| Sertifikasi: | CE SGS |
| Nomor model: | SRS1039 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 pc |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Paket kayu lapis |
| Waktu pengiriman: | 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 10 PC/bulan |
|
Informasi Detail |
|||
| Nama model: | SRS1039 | Jenis pelat: | Mesin Sablon |
|---|---|---|---|
| Merek: | Senny | Layanan Pasca Penjualan: | Video atau online |
| Jaminan: | 1 tahun | Warna yang dicetak: | 3 warna |
Deskripsi Produk
3-Color 80pcs/Min Soft Tube CNC AutomatiC UV Printing Machine
Machine Feature

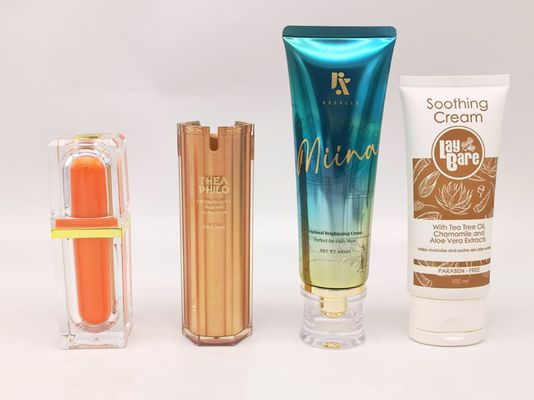

- This machine is well-suited for decorating plastic soft tubes via multiple processes, which include screen printing (using UV inks of various colors), hot stamping, and varnishing.
- Boasting an integrated turntable design, the SRS826 allows all printing tasks to be completed with the same set of fixtures, attaining a printing accuracy of up to ±0.1 mm.
- Powered by a digitally controlled servo motor, the machine enables 360-degree printing on products. Additionally, it is equipped with remote management and service functions, complying with Industry 4.0 standards.
- The machine adopts electrical components from well-known brands, together with a PLC control system. It provides easy operation through a touchscreen and a wireless tablet, guaranteeing stable and reliable performance.
Optional Configuration
- Unscrambling & feeding machine. Hot stamping function. Plasma surface treatment function.
- Visual registration function. LED-UV curing function. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS1039 |
| Printed Color | 3 |
| Work Station | 10 |
| Max.speed | Up to 80 pcs/min |
| Soft Tube Diameter | 15-75mm |
| Soft Tube Height | 60-220mm |
| Max.Printing Length | 220mm |
| Max.Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Printing your vision
About us:
Senny serves a wide array of industries, spanning food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. By utilizing automated printing technologies—including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it creates high-quality, detailed graphics and text on the surfaces of products. These products come in various shapes and are made from materials such as plastic, metal, glass, and ceramics.
Since its founding in 1994, Senny has steadfastly adhered to its business philosophy: delivering top-quality products and services to customers. The company uses advanced electrical control components and materials for research, development, and manufacturing. At the same time, it continuously improves the printing quality of different products to satisfy the growing market demand for high-standard packaging.
