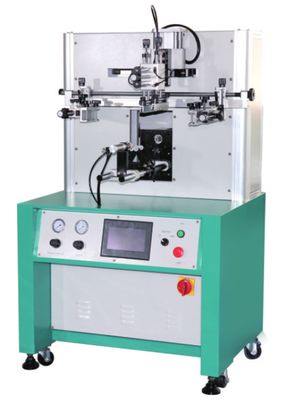

Semi Automatic Screen Printing Machine For Glass Metal Plastics And Ceramics Max Printing Area 350 X 250mm

Semi Automatic Screen Printing Machine For Glass Metal Plastics And Ceramics Max Printing Area 350 X 250mm

Applications:

This is an ergonomically well-designed, highly versatile machine that prints a wide range of shapes—including cylindrical, square, oval, conical, and custom irregular forms. With quick, hassle-free mold change, high-precision mechanical registration (ensuring consistent print alignment), and intuitive front-panel controls for easy operation, the SBS380 stands out as the perfect general-purpose screen printing machine, ideal for applying prints to glass, metal, plastics, and ceramics.



Primarily tailored for single to multi-color repeat screen printing, this solution focuses on round or oval plastic containers—such as detergent bottles, cosmetic jars, pharmaceutical vials, food storage containers, and decorative plastic pieces—effectively meeting the branding and labeling needs of consumer goods and decorative industries.



Technical Specifications:

Technical Characteristics　

1. Electric servo motor drive for screen frame lifting and horizontal printing.

2. PLC control with WEINVIEW touch screen.

3. Panasonic motor and inverter.

4. Vertical lifting head with height adjustment.

5. X/Y/R positioning table with vacuum adsorption table.

6. Linear ball bearings on hard shaft.

7. Squeegee angle and calibration height adjustment.

8. Adjustable squeegee pressure with pressure gauge.

9. Floor level and casters with foot switch control.

10. Electronic stop button and safety light curtain installed.

11. Automatic closing screen frame when printing.

Advantages:

1. If there is a register point as shown in the red circle above, then you do not need a color sensor if you want to print more than one color. We can customize the machine to add or not add sensors.

2. SBS380 can print oval/square/complex shaped containers.

3. SBS380 is all packaged for extra safety and durability.

4. All machines including elevator are controlled by servo drive.
