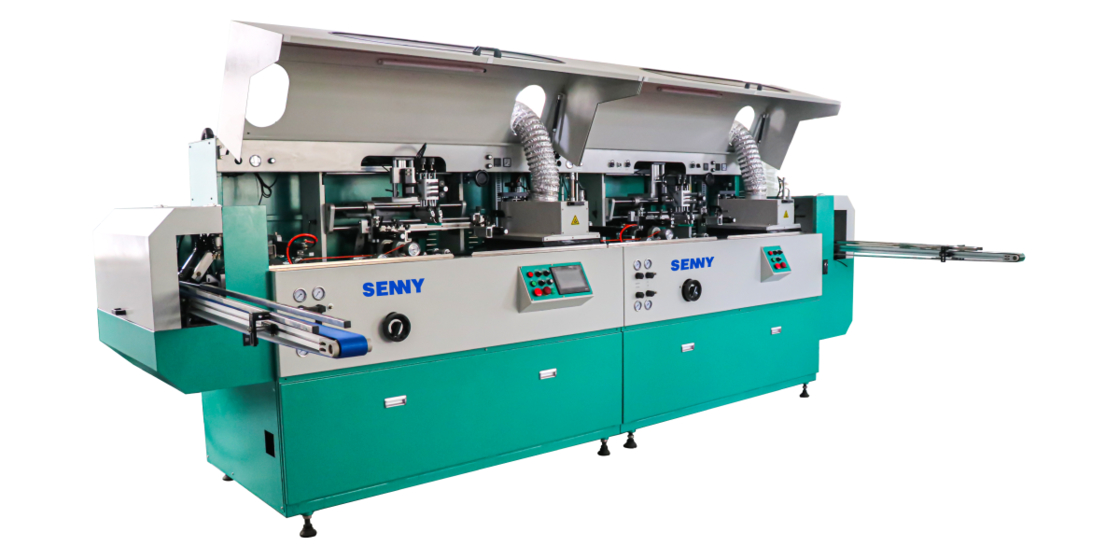

1-12 Work Stations Bottle Screen Printing Machine For Plastic Bottle Up To 85pcs/Min
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | SENNY |
| Sertifikasi: | CE SGS |
| Nomor model: | SL1488-2C |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 pc |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Paket kayu lapis |
| Waktu pengiriman: | satu bulan |
| Syarat-syarat pembayaran: | TT atau LC |
| Menyediakan kemampuan: | 50 pcs/bulan |
|
Informasi Detail |
|||
| Kelas mobil: | Sepenuhnya otomatis | Stasiun: | 1-12 |
|---|---|---|---|
| Jenis pelat: | Printer layar | Layanan purna jual: | Video atau online |
| Warna yang dicetak: | 1 hingga 12 | Merek: | Senny atau OEM |
| Syarat-syarat pembayaran: | T/t | Kemasan rincian: | T/t |
| Sertifikasi: | CE | ||
Deskripsi Produk
1-12 Work Stations Bottle Screen Printing Machine For Plastic Bottle Up To 85pcs/Min
Plastic Bottle printing machine.pdf
Machine Features:

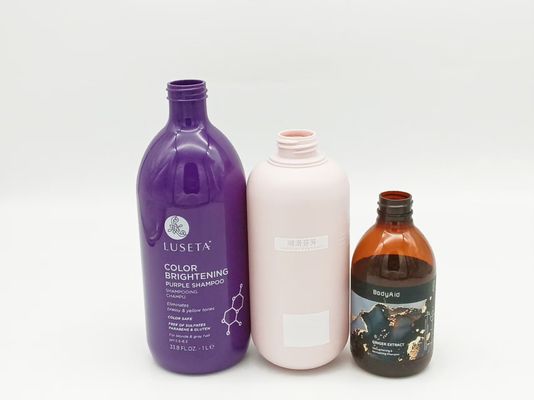

- The machine suits screen printing (various UV ink colors), hot stamping, labeling and other decorations on round, oval, square and other plastic bottle shapes.
- Perfect transmission design ensures stable operation, fast changeover, easy operation and excellent performance.
- Uses renowned brand electrical components, user-friendly touch screen and PLC control for reliable performance.
- Highly customizable modular structure; can be linearly connected as a 1-8 color printer.
- Standard configuration: screen printing and UV curing modules. Screen printing function is interchangeable with hot stamping or labeling (optional).
- Optional connection with independent hot stamping, labeling, quality inspection modules to form a multi-functional printer.
Technical Specifications:
| Machine running speed | up to 85pcs/min(printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW X colors |
| Main machine size | Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt) |
| Main machine weight | 1200kg |
| Auxilary machine size | Length 1190mm X Width 1200mm X Height 2000mm |
| Auxilary machine weight | 1000kg |
Optional Configuration:
- Plasma or flame surface treatment system.
- Hot stamping or labeling system.
- LED-UV curing or UV curing system.
- Automatic bottle unscrambler feeding.
- Visual defects detect
Customers can choose different curing systems according to their own needs.
UV curing with mature technology, low lamp replacement cost and low maintenance cost.
Compared with traditional high-pressure mercury, LED curing has the characteristics of soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupied, and uniform light spot, but it has the disadvantage of high maintenance and replacement cost.
