8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min

Detail produk:

Tempat asal: Dongguan China
Nama merek: SENNY
Sertifikasi: CE SGS
Nomor model: SRS826

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1 pc
Harga: negotiable
Kemasan rincian: Paket kayu lapis
Waktu pengiriman: 45 hari
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 10 PC/bulan
Harga terbaik Kontak

Informasi Detail

Nomor model: SRS826 Warna pencetakan: 2 warna
Jenis pelat: Mesin Sablon Jaminan: 1 tahun
Layanan Pasca Penjualan: Video atau online Detail Pengemasan: Paket kayu lapis

Deskripsi Produk

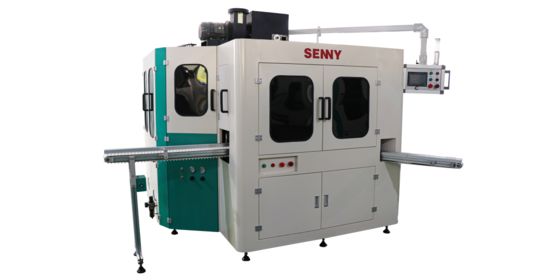

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min





Machine Feature



  • The machine is suitable for screen printing of various colors of UV ink,hot stamping,varnishing and other decorations on plastic soft tubes.

  • The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm.

  • The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and service functions(industry 4.0).

  • The machine adopts well-known brand electrical components, PLC control system,easy-to-use touch screen and wireless tablet operation,with reliable performance.

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 0







Optional Configuration



  • Unscrambling & feeding machine.              Hot stamping function.                             Plasma surface treatment function.



  • Visual registration function.                         LED-UV Curing function.                         Finished product quality inspection function.





Technical Parameters



Machine Model SRS826
Work Station 8
Printing Speed Up to 80 pcs/min
Soft Tube Diameter 15-75mm
Soft Tube Height 60-220mm
Max.Printing Length 220mm
Max.Printing Height 180mm
Printing Accuracy ±0.1mm







Printing Sample







8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 1

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 2







About us:



     In 2020, Shenli provided Russian customers with a CNC 1-color glazing + 3-color screen printing UV curing production line for hoses. Since then, Shenli has been capable of offering customers the production capacity of various CNC multi-color screen printing, gold stamping and quality inspection machines for hoses.



8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 3



8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 4
