Available 1-4 Color Automatic UV Offset Printing Machine For Plastic Bottle Cap
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | SENNY |
| Sertifikasi: | CE SGS |
| Nomor model: | SO4328 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 pc |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Paket kayu lapis |
| Waktu pengiriman: | 45 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 10 PC/bulan |
|
Informasi Detail |
|||
| Model mesin: | SO2168 | Jenis pelat: | Printer layar |
|---|---|---|---|
| Jaminan: | 1 tahun | Merek: | Senny |
| Layanan Pasca Penjualan: | Video atau online | Warna pencetakan: | Tersedia dalam 1-4 warna |
Deskripsi Produk

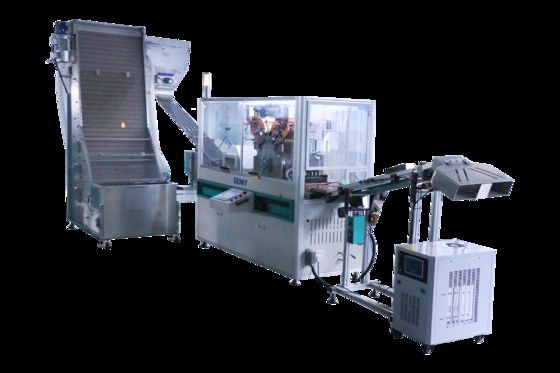

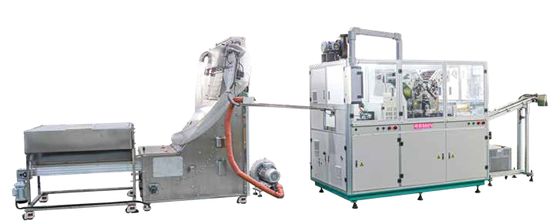

Available 1-4 color Automatic UV Offset Printing Machine For Plastic Bottle Cap
Machine Feature
- SO4328 is designed for printing various colors of UV inks on the tops of plastic bottle caps, and it delivers excellent performance on common cap materials like PP and PE. The patterns printed with UV inks also boast strong adhesion and scratch resistance, making the machine well-suited for the daily use scenarios of bottle caps.
- The machine offers an optional 1-4 color high-speed printing system, paired with accurate color registration. This flexible color option caters to both simple monochrome logo printing and multi-color pattern printing needs, while the precise color registration ensures sharp edges between printed colors and smooth color transitions.
- The SO4328 uses electrical components from well-known brands, along with an easy-to-operate touch screen and PLC control system, resulting in reliable overall performance. These branded electrical components greatly reduce the machine’s failure rate and prolong its service life, while the touch screen and PLC system allow operators to quickly master operations and adjust parameters with precision.
- The SO4328 is compatible with cap making machines, cap slitting machines, and quality inspection machines. This compatibility supports the creation of an automated plastic bottle cap production line, eliminating the need for manual handling and transfer between processes, and further enhancing overall production efficiency while ensuring consistent cap quality.
Optional Configuration
- Unscrambling & feeding machine. Cap slitting machine.
- LED-UV curing system. Plasma surface treatment function.
- Quality inspection machine.
Technical Parameters
| Machine Model | SO3248 | SO4328 |
| Bottle Caps Diameter | 28-38mm | 28-38mm |
| Printing Diameter | Less than 35mm | Less than 35mm |
| Printing Color | Available in 1-4 colors | Available in 1-4 colors |
| Printing Speed | Up to 2400 pcs/min | Up to 3200 pcs/min |

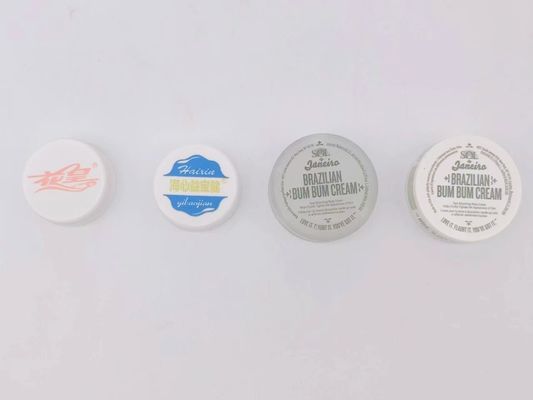

Printing Sample
About us:
Since 1994, Senny has consistently adhered to the business philosophy of delivering high-quality products and services. It utilizes advanced electrical control components and materials for R&D and manufacturing, while continuously enhancing printing quality across various products to meet the growing market demand for high-quality packaging.
In 2022, Senny successfully launched a high-speed, fully automatic 2-color UV-cured offset printing line for bottle caps. This line is equipped with supporting production systems for ring cutting, printing and testing, which can connect to high-speed cap-making machines. The equipment boasts high reliability and enables non-stop continuous production for long periods.
