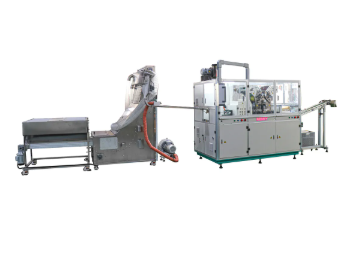

Fully Automatic Caps Printing Machine
Detail produk:
| Tempat asal: | Dongguan Cina |
| Nama merek: | SENNY |
| Sertifikasi: | CE SGS |
| Nomor model: | SOS2022 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | paket kayu lapis |
| Waktu pengiriman: | satu bulan |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 10 pcs/bulan |
|
Informasi Detail |
Deskripsi Produk
It is specially designed for customers who need bottle cap printing with high-speed, lower cost and simple operation. Machine design is based on the principle of dryoffset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units and one set of vanishing unit, it can achleve image printing with accurate registration and overlap. Control by PLC with touch screen interface, it organizes a high efficiency production line.
1. Features:
- Equipped with two automatic escalators, it can store a large volume of caps and feed the correct number of caps into the unscrambler.
- Two unscrambler are used for guide the caps to the correct direction and feed to the main printing machine.
- This cap printing machine equipped with 1 set of 3-color offset printing unit
- Standard using LPG gas for surface treatment before printing.
- 2 flame heads, which make the surface treatment more efficiently.
- The jig mandrel will be made according to the samples' specification given to us, and delivered together with the machine.
- The Fusion UV system has automatic temperature control and extraction system which avoid the lamp over-heated & maximized the lamp efficiency.
- This system composed by bottle cap counter and printing detection system.
2. Technical Specifications
| Machine running speed | Up to 1600pcs/min |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
3. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.
